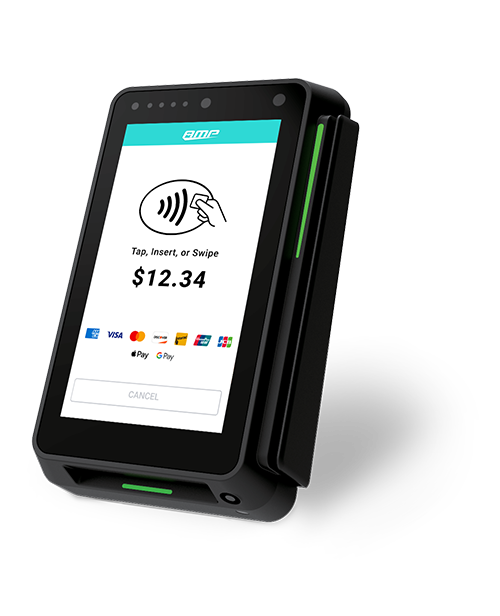

P 6600 Terminal
Processor
AP: Cortex Quad-core A53, 2.0GHz
Memory
2GB RAM + 8GB ROM
Optional: up to 3GB RAM + 32GB ROM
Display
5″ HD, IPS, 1280 x 720 capacitive multi-touch screen, high brightness panel
Connectivity
3G / 4G LTE, Ethernet 10/100M
Wifi 2.4G & 5G
USB A
LAN
RS232
MDB M/S or JVMA
Microfit
GPS
GLONASS
Card Readers
Magnetic card reader
Smart card reader
Contactless card reader
1 SIM (optional: 2 SAM)
System
AMP Smart OS
(Powered by Secure Android 13)
Security
3DES Encryption
Master/Session and DUKPT Key Management
Supports point-to-point encryption
Power
Input: 200~240v AC, 50~60 Hz
Output 12V DC 2A
Output 12V DC 2A
Enclosure
IP65 Water & Dust Protection
IK08 Impact Protection
Flame Resistance: ANSI/UL 94 V-0
Operating Temp
-20°C to 70°C (-4°F~158°F) ambient
Humidity 0%~90%
Camera
2MP QR Camera supports 1D/2D code payment
Optional: 2MP front camera supports 1D/2D code payment
Physical
(158x100x32mm) LxWxD
Cutout: 86.5×80.5×24.5mm EVA/NAMA fit
Cutout: 86.5×80.5×24.5mm EVA/NAMA fit
Other
1 Built-in speaker (90dB @ 10cm)
LED card slots
Proximity sensor
Infrared sensor
