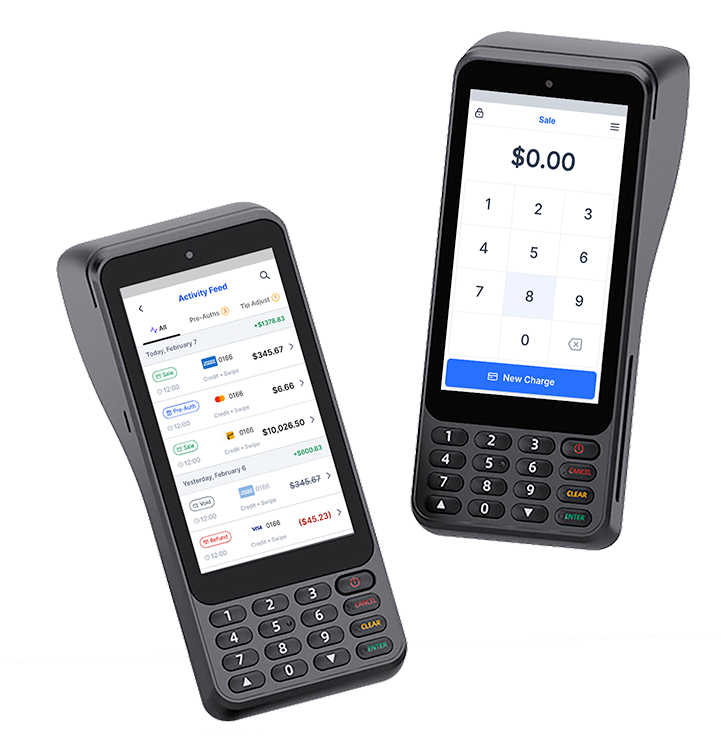

P 8100 Terminal
OS
AMP OS, powered by Android 13
Processor
AP: Cortex Quad-core A53, 2.0GHz
SP: CSO security core, 60MHz
Memory
2GB RAM + 8GB ROM
2GB RAM +16GB ROM (optional)
Card Readers
Magnetic Stripe
Chip & PlN
Contactless
Camera
Front: 2MP Fixed Focus
Rear: 5MP Auto Focus, supports 1D & 2D scanning
Display
5″ HD, IPS, 1280 x 720, with adjustable backlight
Capacitive multi-touch screen
Electronic signature
Wireless Communication
4G/3G/2G
Wi-Fi 2.4G & 5G
Bluetooth 5.0
Power
Battery: 7.2V/2600mAh,
7.2V/3200mAh (optional)
Adapter: 5V/2A
7.2V/3200mAh (optional)
Adapter: 5V/2A
Card Slots
2 x SIM + 2 x SAM
1 x eSIM (optional)
Positioning
GPS
GLONASS
BEIDOU
Keys & Buttons
1 Power ON/OFF
Numeric x 10
Power x 1
Printer
High-speed thermal printer
Print Speed: 90mm/s
Paper Roll: 58 x 40mm
Metal paper cutter
Print Speed: 90mm/s
Paper Roll: 58 x 40mm
Metal paper cutter
Ports
1 x Type C OTG USB
Adapter
Input: 100-240V AC, 50Hz/60Hz
Output: 5.0 V DC, 2.0A
Physical
190mm x 80mm x 57.4mm
450g (including battery)
Operating Environment
Operating temperature: 0℃C-50℃
Storage temperature: -20°C~60°C
Relative humidity: 5%~ 95%
(Non-condensing)
Storage temperature: -20°C~60°C
Relative humidity: 5%~ 95%
(Non-condensing)
Audio
Speaker x 1, 10cm>90dB
Pogo pin
Magnetic Charging (optional)
Functional Base (optional)
Certifications
PCIPTS 6.x, EMV L1&L2, EMV CL L1, Certificatlons QUICS, TQM, PayWave, PayPass, American Express,Discover D-PAS, JCB, Anatel, ABECS, ATEX, CE.
