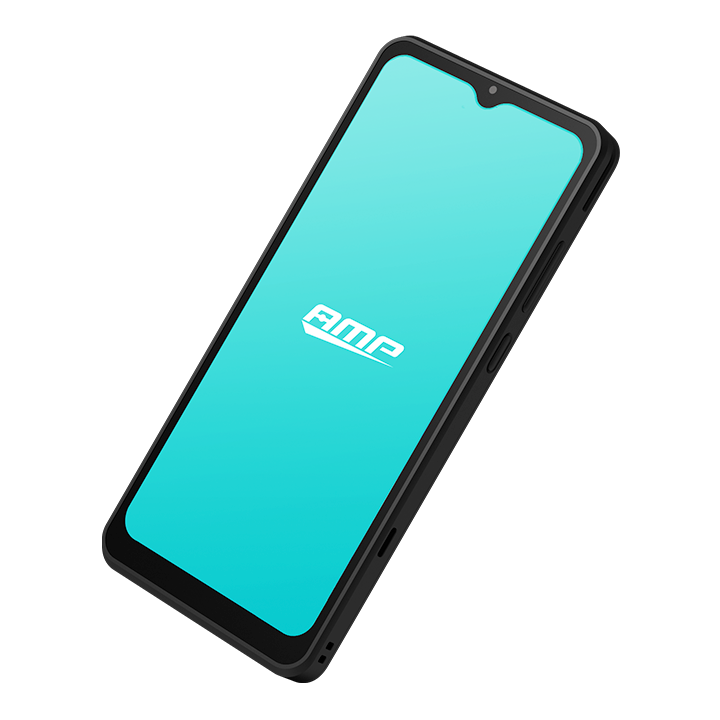

P 8400 Terminal
OS
AMP OS, powered by Android 10
Processor
Cortex A53 Quad-Core,
1.4GHz + Secure Processor
Memory
1GB RAM + 8GB Flash
2GB RAM + 16GB Flash (optional)
Card Readers
Magnetic Stripe
Chip & PlN
Contactless
Camera
Front: 2MP Fixed Focus
Rear: 5MP Auto Focus, with Flashlight
Display
6.5″ IPS HD+ 720 x 1600
Wireless Communication
4G/3G/2G
Wi-Fi (802.11 a/b/g/n/ac), 2.4G&5G
Bluetooth 4.2
Battery
3.8V/3000mAh/11.4Wh
Card Slots
2 Mini SIM + 1 Mini SAM
2Mini SIM + 2 Mini SAM (optional
Positioning
GPS
GLONASS
BEIDOU
Keys & Buttons
1 Power ON/OFF
1 Volume+
1 Volume-
Audio
1 Speaker
Ports
1 USB Type-C OTG
2 PIN POGO PIN
Adapter
Input: 100-240V AC, 50Hz/60Hz
Output: DC 5V/1A
Physical
167.5 x 76.5 x 16.8mm, 255g
(including battery)
Operating Environment
Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 10%~95%
(Non-Condensing)
Relative Humidity: 10%~95%
(Non-Condensing)
Storage Environment
Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing)
Certifications
PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Rupay | ABECS | MasterCard TQM | CE | TQM | CBI NSICC | MIR | CPACE
